Back Cross section explained.

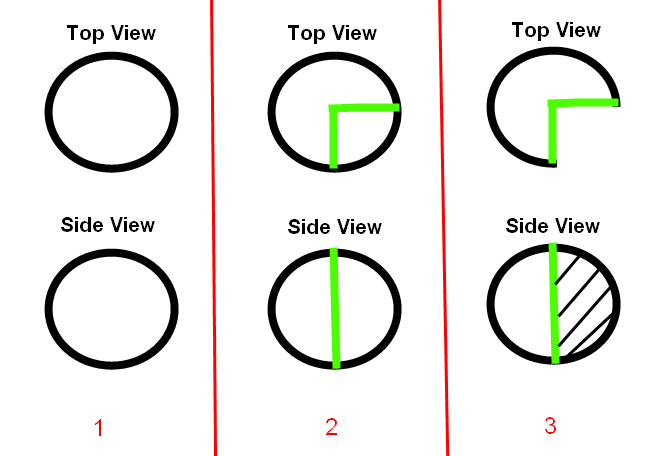

1 = We start off with a drawing of a sphere.
2 = Then we add the green lines where the sphere will be cut.
3 = Finally we cut at the green lines and add cross hashing. (The thinner lines running diagonal which represents the material being removed.)
NOTE: Drawings of fittings on the website only show the side view.
